Battery Repair Box, SMB Comm Box EV2400 Battery Detection Debugger Case with Connecting Cable, with Automatic Voltage Regulator Module

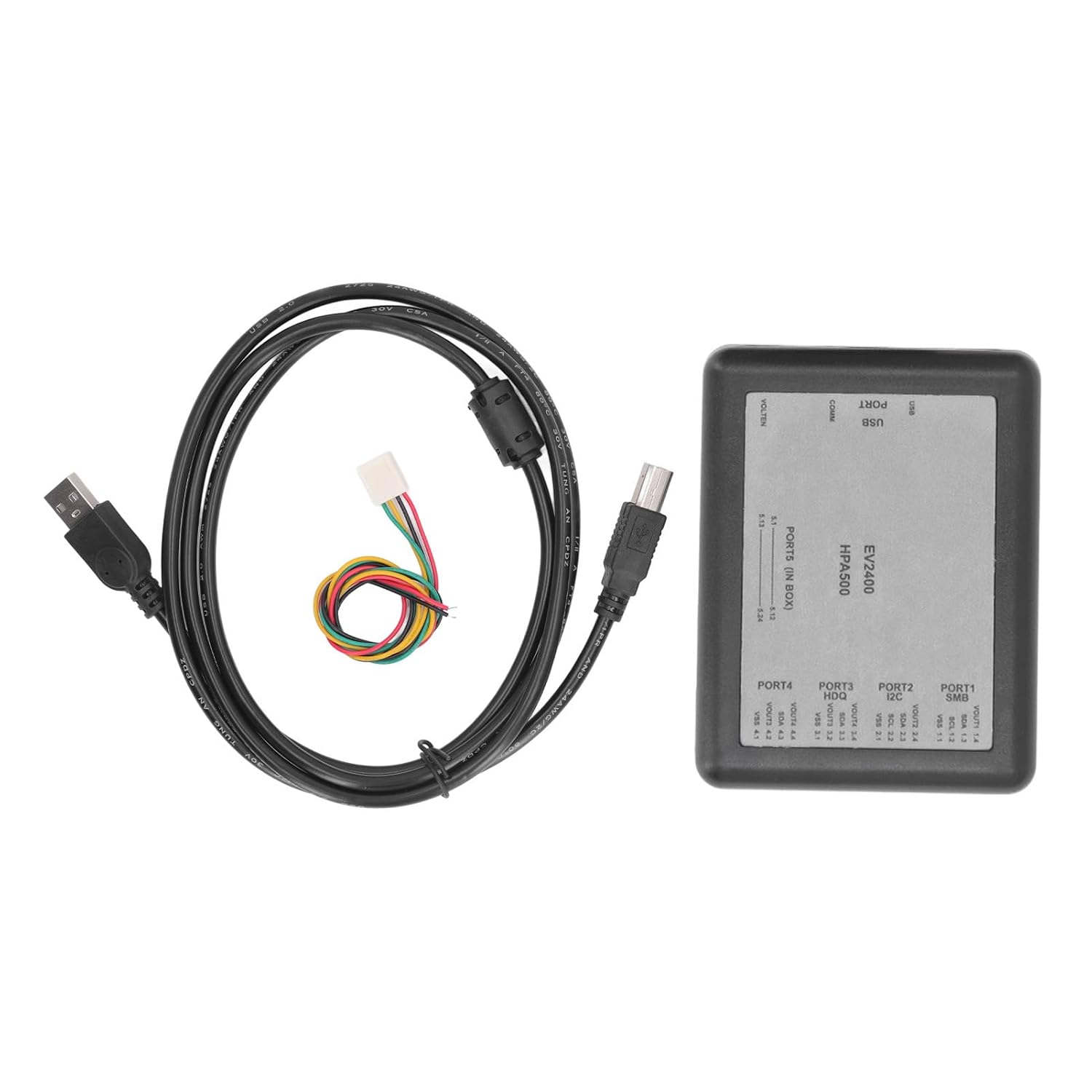

Specification:Item Type: Battery Repair BoxMaterial: ABSFunction: 1. Supports for IIC, for SMBUS, for HDQ comm, with all five ports available for use.2. The three color status light indicates three states (power supply, comm, USB data).3. Supports subsequent firmware upgrades, does not support chips.4. Directly use a USB data cable to communicate with the computer.5. Small size, easy to carry.6. Any external reference power supply can be provided.7. The output pin is pulled up without external pull up resistor, and the pull up level supports stepless voltage stabilization.8. Output port level conversion .9. Strengthen ESD .10. Supports power supply and high current output.11. Any voltage output from the VOUT port.12. The pull up voltage at the output port is adjustable.13. Add 6 independent power supplies.14. .15. Overcurrent and transient overcurrent .16. Overheat .17. Imported main control 128Flash+8RAM+2USB top storage, without overflow.18. Supports multiple voltage specification chips.packing list:1 x Battery Repair Box1 x Data Cable1 x Connecting CableNote:Use Vout when there is no battery. Do not connect Vout when connecting batteries.Do not start the battery during debugging to avoid accidental short circuit.

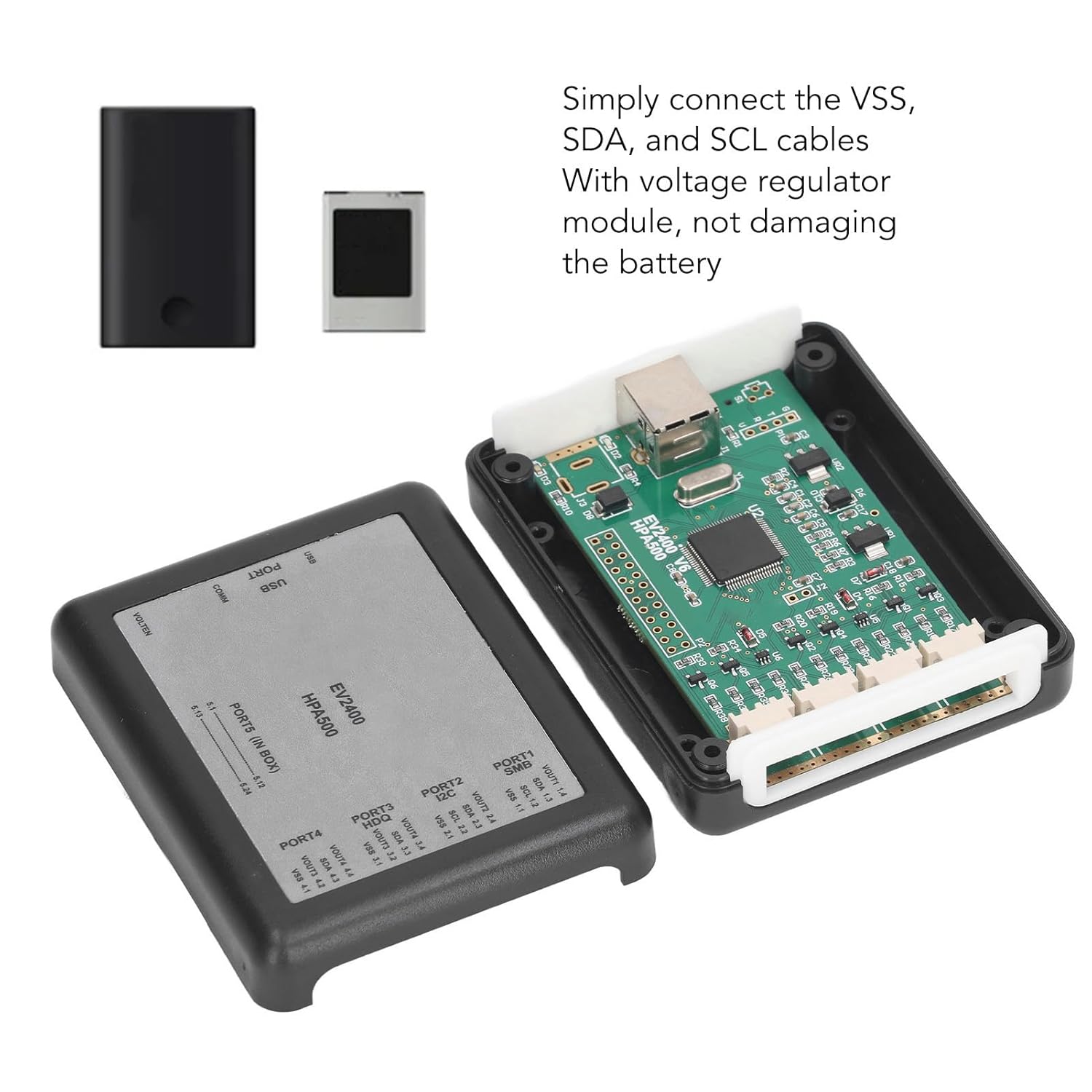

• [Easy and Convenient Connection]: The battery repair box allows for simple and hassle- connection during the battery debugging process. Only the VSS, SDA, and SCL cables need to be connected, making the setup quick and easy.
• [Efficient Voltage Regulation]: With its built-in automatic voltage regulator module, this battery repair box ensures a stable power supply to prevent any damage to the battery during the debugging process. It provides strong and peace of mind.
• [Wide Range of Functions]: This battery debugger box supports 8 protocols with full functionality, including AtC, triggering, wake up, Vout, and burn control in the full version. It offers comprehensive support for various battery detection and repair requirements.
• [Convenient Status Indicator]: Equipped with a 3-color status indicator, this battery repair box clearly displays the power supply, communication, and USB data status. It allows for quick and easy monitoring of the device's performance.
• [Enhanced Circuit ]: The battery debugger case is designed with various circuit protections, including output level conversion , , overcurrent , and overheating . These added safety features ensure the longevity of your battery and the device's durability.
